CAREL compactSteam is humidification solution of small and medium retail and residential environments.

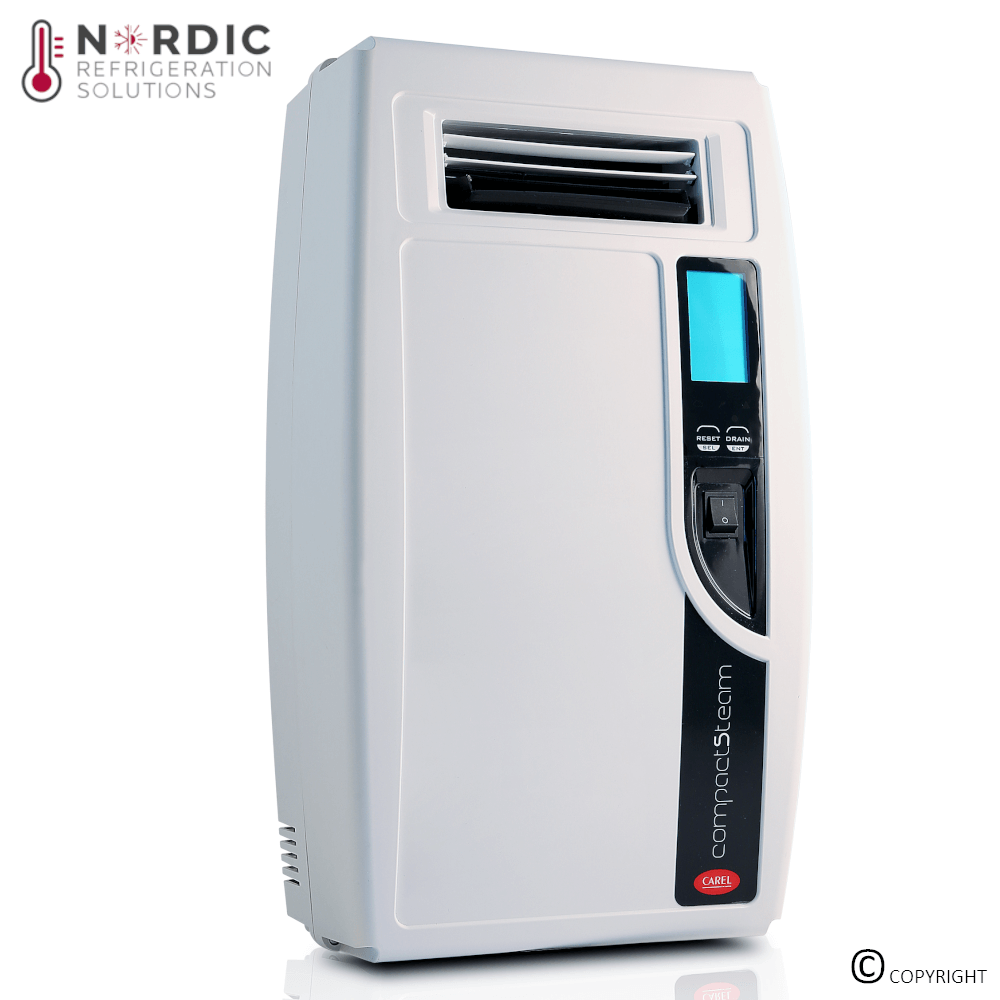

Carel CHF04N2003 compactSteam 4,5 kg/h, 230 Vac single phase.

kr.5.432,70

Price is excl. TAX.

Available on backorder

Carel CHF04N2003 compactSteam with fan, used to regulate room humidity. The technology  beheind compactSteam is is an immersed electrode humidifier.

Supply; 230Vac single phase

Possible to regulate in two ways; ON/OFF or 0 to 10 V proportional.

Proportional regulation:

Default the unit is set to proportional regulation: At maximum request is 10 V on output on terminal 7 A OUT, unit is running until the set point – differential range threshold is reached. When this threshold is reached, the output gradually lowers within the set differential to 0 V

ON/OFF regulation:

It is possible to change the default setting to ON/OFF regulation: The humidity request is
turned on and the relay closes contacts 1 and 2, The relay opens contacts 1 and 2 when humidity is under the “set point – differential” range and is turned off, when the set point is reached.
