LG UUD3.U30 can be used with both 1,2,3 and 4 indoor units. Used in single split system you have multiple choices of indoor units. If the unit is used in SYNCRO system, with more indoor units you can only combine with 4-way cassette and duct units.

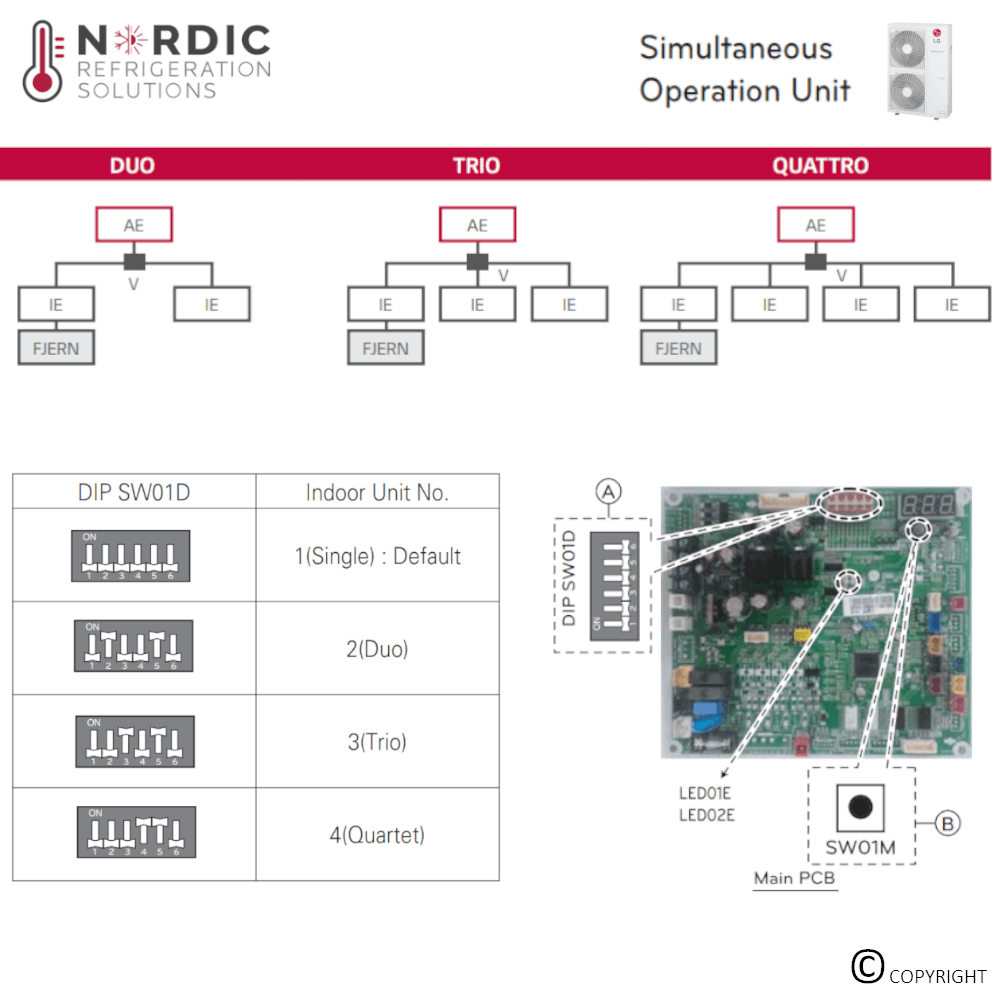

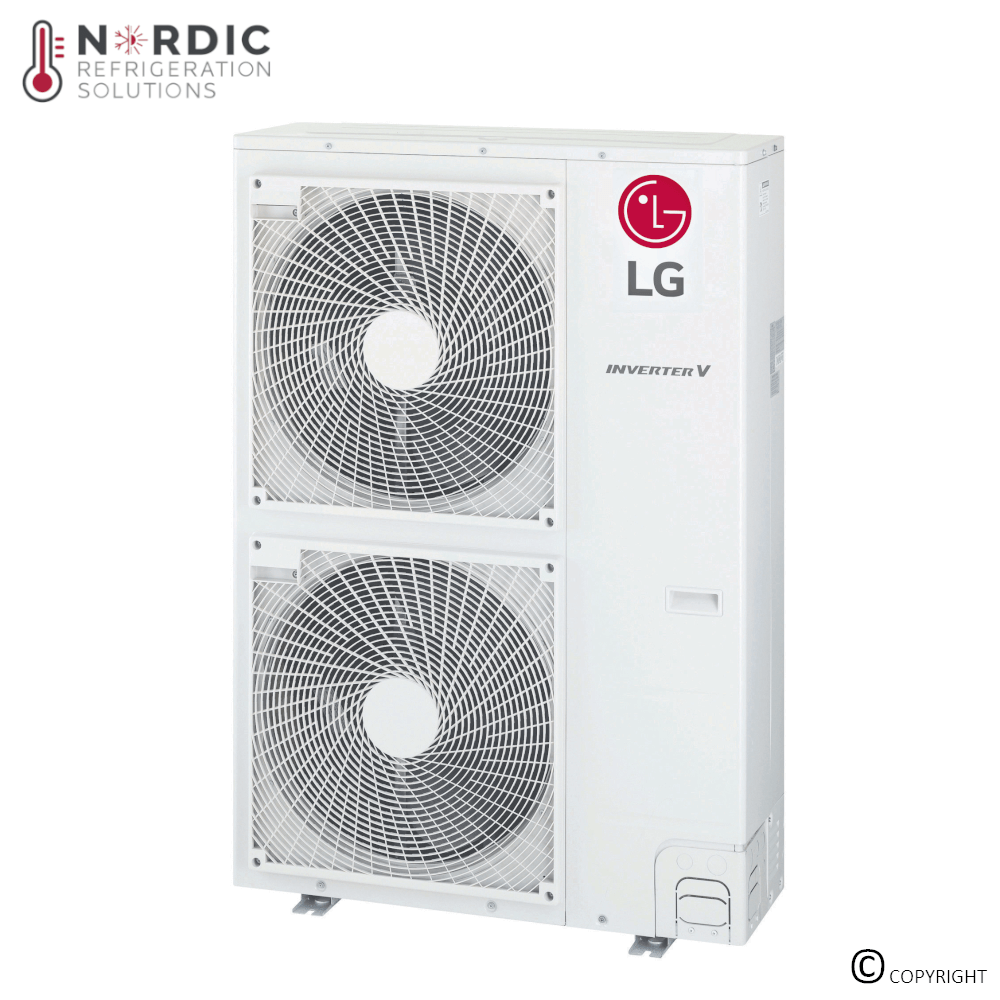

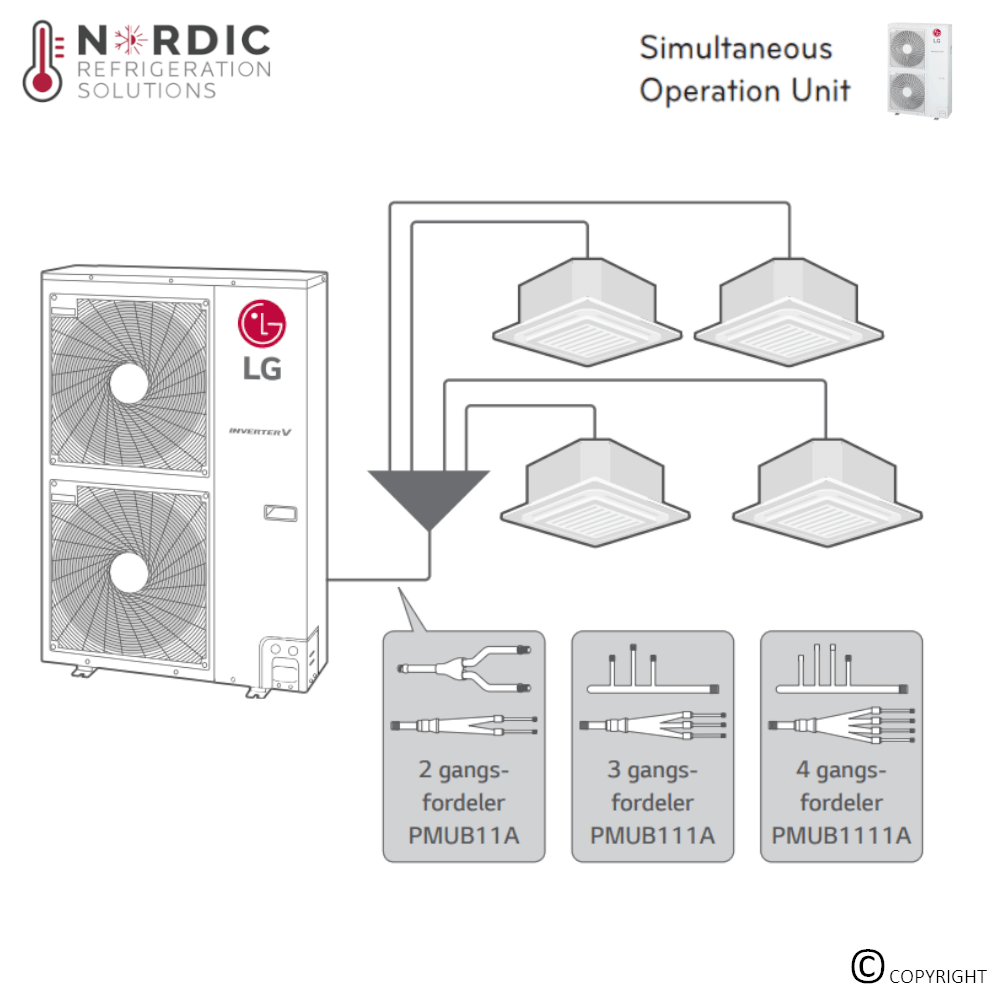

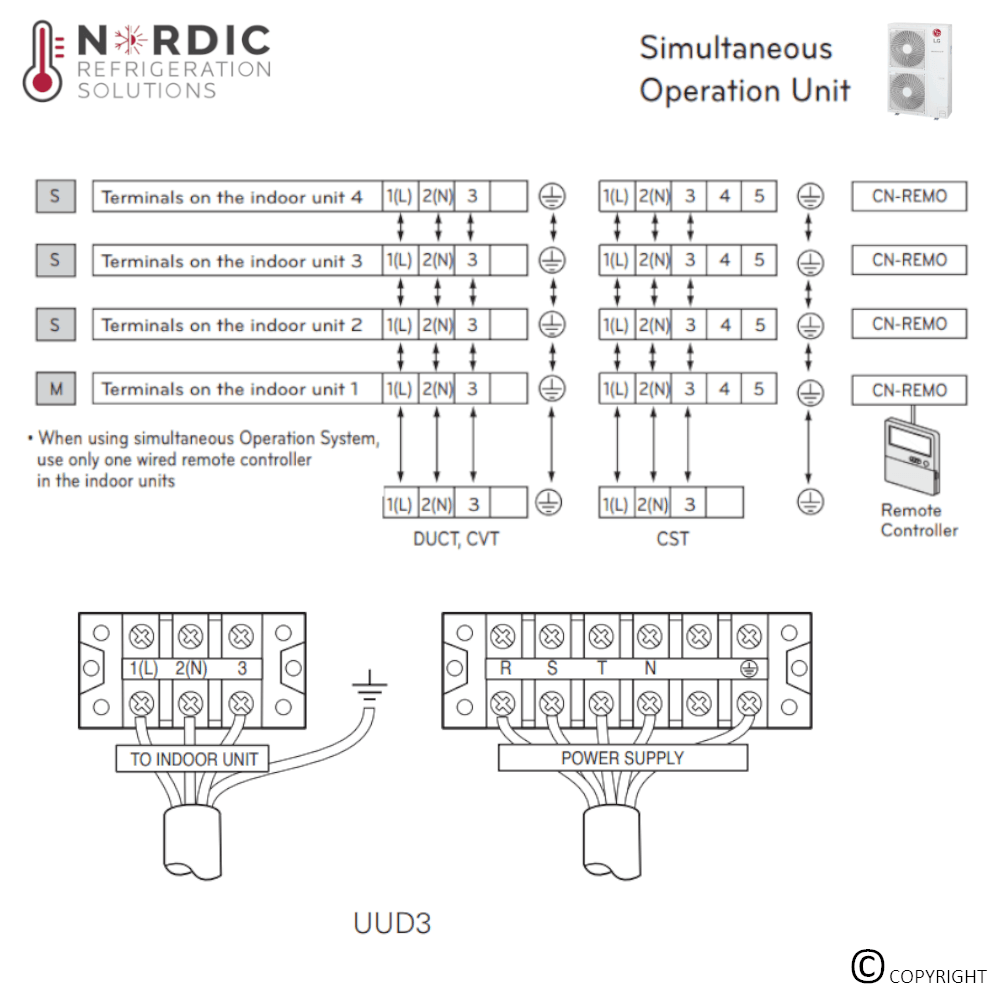

Please see the pictures for more information.
kr.27.835,00
Price is excl. TAX.
In stock
LG UUD3.U30 can be used with both 1,2,3 and 4 indoor units. Please see the pictures for more information.
| Power Supply | Ø, V, Hz | 3,380-415,50 | ||
| Circuit Breaker | Min | Amp | 20 | |
| Power Supply Cable (included Earth) | No x mm3 | 5C x 2,5 | ||
| Dimensions | Net | Net W x H x D | mm | 950 x 1,350 x 330 |
| Weight | Net | kg | 85 | |
| Compressor | Type | Inverter Scroll | ||
| Refrigerant | Type | R32 | ||
| GWP (Global Warming Potential) | 675 | |||
| Precharged Amount | kg | 3.0 | ||
| t-CO?eq. | 2.025 | |||
| Additional Charge (After 7.5m) | g/m | 40 | ||
| Fan | Air Flow Rate | Rated | m³/min x No. | 55 x 2 |
| Total Piping Length | Min / Max | m | 5-85 | |
| Piping Elevation | IDU – ODU | Max | m | 30 |
