Evaporator can be delivered with coading of fins and epoxy painted cabinet. Please ask for extra price to have this option.

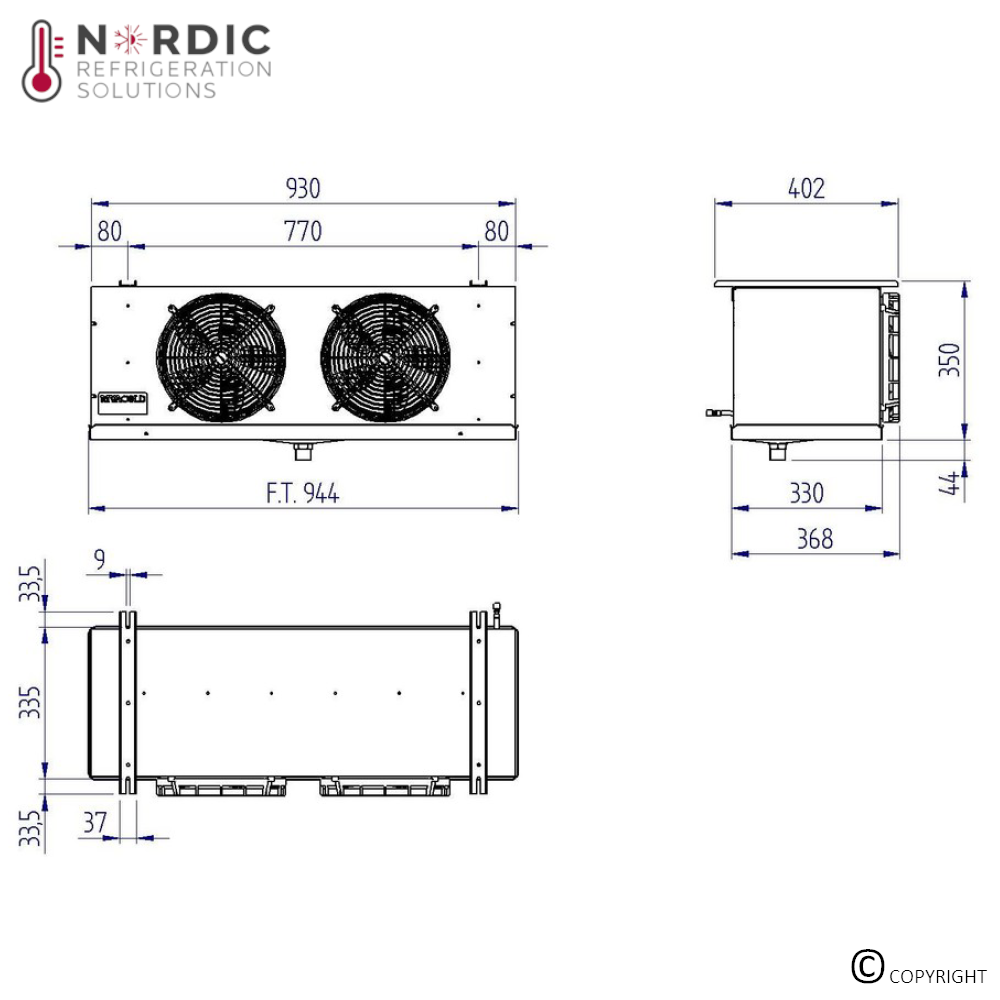

Rivacold RCXB 22504 ED R744 evaporator

kr.8.409,74

Price is excl. TAX.

Available on backorder

Code RCXB22504ED
Refrigerating capacity 1995w
Cold Room Temp. 3 °C
ΔT 7K
Refrigerant R744
Range RCX
Model Cubic Cubic
Application MBP
PED 0
Rows number 4
Total surface 7.52 m²
Defrosting (Watt) 1350 W
Net weight 20.7 kg
Inlet connection 10 mm
Outlet connection 10 mm
Drain connection 1″ Gas (33mm)
Fin spacing 5.3
Circuit volume 1.29 dm³
Fan-motor
Type Rotore esterno “ec”
Fan-motors no. 2
Diameter 254 mm
Power supply 230/1/50-60
Low speed 1200 rpm
High speed 1300 rpm
Power consumption 88 W
Current consumption 0.38 A
Air flow 1566.3 m³/h
Air throw 7.5 m
